Device for samples preparation PT2110G

Device for samples preparation

PT2110G model

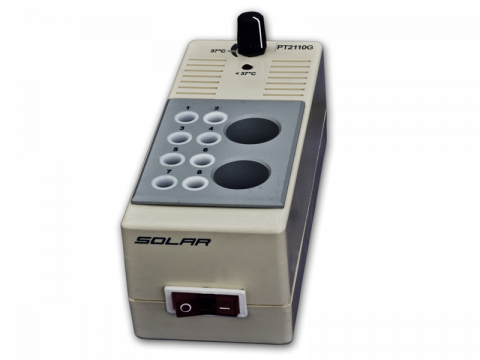

The device for samples preparation (the dry-bulb thermostat) PT2110G is intended for thermal stabilizing of cells with the researched liquid at temperature of 37 °С

Distinctive features

  • Consists of 10 preparatory cells: 8 for cells, 2 for reagents
  • It is necessary in case of the large volume of researches, significantly increases productivity

Scope

The device of samples preparation PT 2110G is used as the additional equipment for operation with single-channel clotter of CGL2110

State registry of SI of RB No. 03 09 0466-04
State registry of SI of the Russian Federation №33 884-07
State registry of SI of UKE
Nominal temperature of termostating37 °C
Limits of temperature adjustment from nominal ratenot less than ± 1 °C
Stability of the set temperature keeping±0,1 °C
Time of operating mode accessno more than 30 min.
Cells8 pieces  Ø08x45 mm
Capacities for reagents2 pieces  Ø23 mm
Dimensions75x80x190 mm
Weight1,5 kg
Energy consumption230 (± 10%) V, 50 Hz, 35 VA
Cell typeOptical wave length, mmInternal dimensions, mmPacking, шpc
20021Polystyrene round cellsØ 8х45200
20022Magnetic one use anchorsØ 1,8х45200
